①The breakaway couplin for hydrogen is capable ofquick sealing,safe and reliable;

②It can be reassembled and reused after being pulled off,which results in low maintenance costs;

③The breaking force and size of interface can be customized.

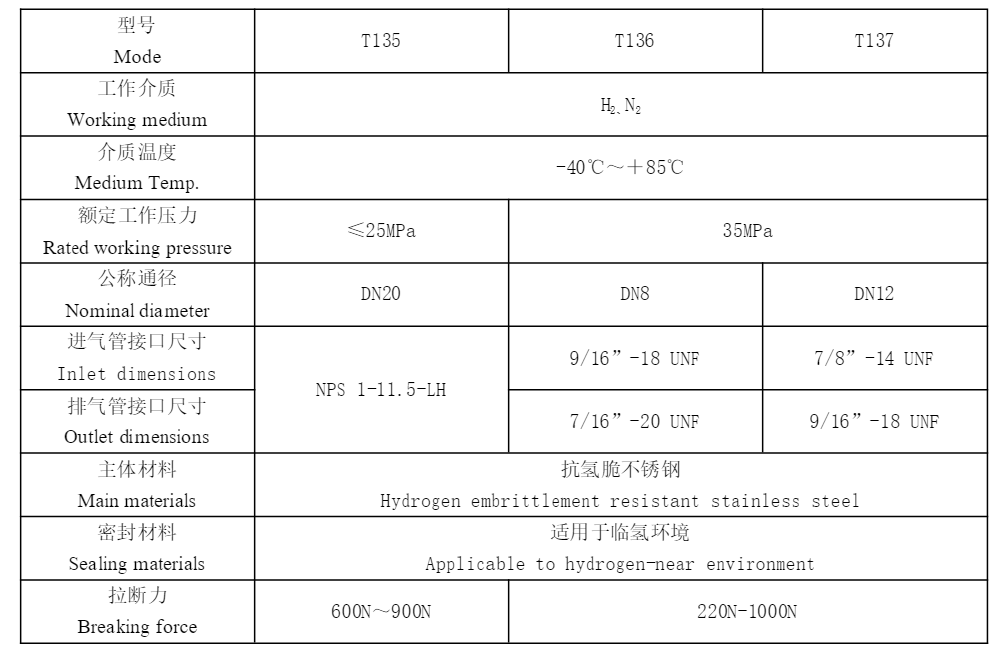

产品参数

主要用途

The T13 series high-pressure hydrogen breakaway coupling is a safety protection product designed to prevent the hydrogen refueling hose or other parts from being damaged by abnormal external forces. In order to meet the requirements for different specifications of refueling caliber, the breakaway coupling integration of two specifications and two types has been formed, in which the T136 breakaway coupling is to match the small-caliber hydrogen refueling nozzle and the T137 breakaway coupling is to match the large-caliber hydrogen refueling nozzle.
